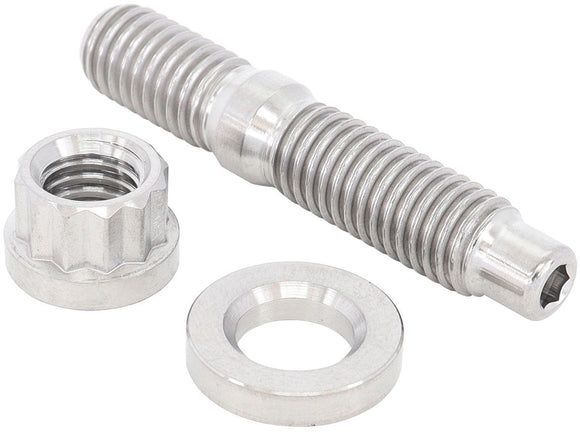

Aeroflow Titanium Stud, Nut and Washer Kit
Part Numbers: AF55-2000 to AF55-2004
Sold in singles
Aeroflow Performance titanium studs are 45% lighter and stronger then your regular steel stud and nut combo you find at your local bolt shop. The high strength and super lightweight Ti 6Al-4V grade (Grade 5) studs are the perfect replacement for turbo manifolds, exhaust headers or intakes. The use of factory OEM bolts and studs they can result in stripped or broken bolts and inadequate clamping force, resulting in leaks. Aeroflow Performance titanium stud and nut combo incorporates a hex key tip that allows them to be easily installed using an Allen wrench, Titanium 12-point nuts and washers are included.
Sold in one kit of 1 stud, 1 nut and 1 washer.
| AF55-2000 | AF55-2003 | AF-2004 |
| M8 x 1.25 | M10 x 1.25 | M10 x 1.5 |
|
Stud Stud Size Thread: M8x1.25 Total Length: 45mm Allen Key: 3mm Short Thread Length: 14.5mm Long Thread Length : 20.5mm Washer Size Outside Diameter: 18.5mm Inside Diameter: 8.3mm Thickness: 3mm Nut Size Thread: M8x1.25 Height: 8mm Flange Diameter: 15.8mm Socket Size: 12mm Total Weight: 11 Grams |
Stud Stud Size Thread: M10x1.25 Total Length: 45mm Allen Key: 3mm Short Thread Length: 14.5mm Long Thread Length : 20.5mm Washer Size Outside Diameter: 18.5mm Inside Diameter: 10.3mm Thickness: 3mm Nut Size Thread: M10x1.25 Height: 10mm Flange Diameter: 20mm Socket Size: 14mm Total Weight: 22 Grams |
Stud Stud Size Thread: M10x1.50 Total Length: 45mm Allen Key: 3mm Short Thread Length: 14.5mm Long Thread Length : 20.5mm Washer Size Outside Diameter: 18.5mm Inside Diameter: 10.3mm Thickness: 3mm Nut Size Thread: M10x1.50 Height: 10mm Flange Diameter: 20mm Socket Size: 14mm Total Weight: 22 Grams |
