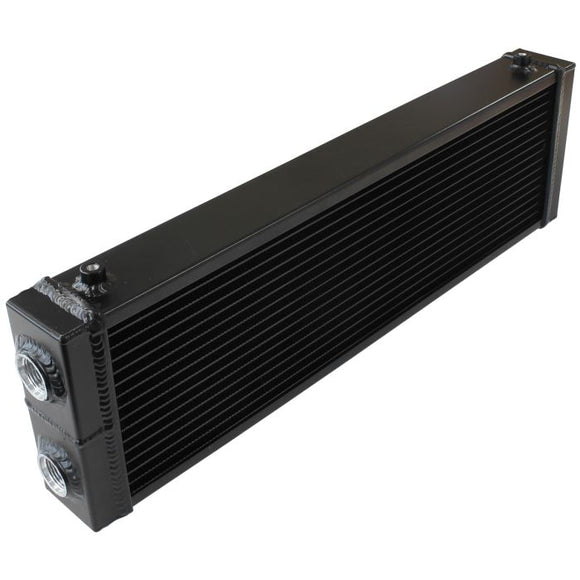

Small Universal Heat Exchanger

Aeroflow SKU: AF77-2048

$151.95 NZD

Tax included

Small Universal Heat Exchanger  with -12 ORB Inlet/Outlet Ports

Part Numbers: AF77-2048

The Aeroflow Performance universal heat exchanger is a dual pass/single row design which allows the coolant to flow across the core of the heat exchanger two times before exiting the radiator for the lowest outlet temperature possible. In a liquid-to-air intercooler system or a supercharger setup, the air is cooled by liquid, typically water. These systems require a supplemental heat exchanger to cool the liquid running through the intercooler. it is recommended this type of heat exchanger is front mounted and/or accessible to fresh air flow for optimal performance.

Overall Dimensions
- Tank end to Tank end: 600mm
- Height: 170mm
- Core Width: 65mm
- 4 x M8 x 1.25mm mounting bungs
- 2 x -12ORB female inlet/outlet ports
- 1 x 1/8" NPT bleed port on top end of tank.
