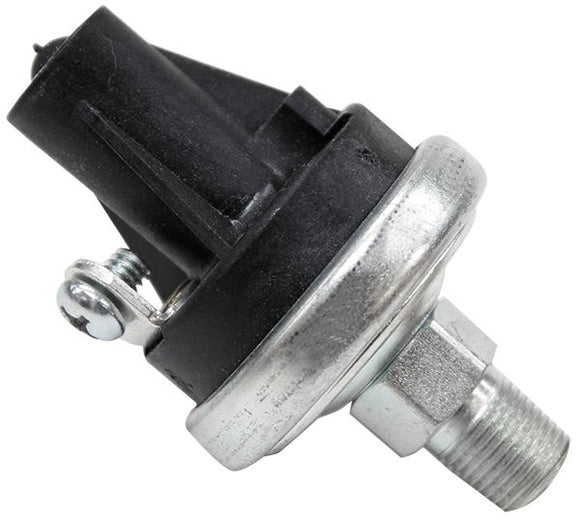

Aeroflow Fuel Safety Switch 1/8"NPT
Aeroflow's Hobb switches are a great way to ensure safety of your engine.
AF49-2010: 5-7 PSI (.3-.5BAR) can be used to cut ignition when pressure drops.
| Specifications | AF49-2010 |
| Pressure Set Point 1 | Factory Set from 4 to 7PSI |
| Max Operating Pressure | 150 PSI |
| Burst Pressure | 750PSI |
| Operating Temperature Range | -40° to 120°C |
| Electric Rating |
Resistive: 15AMP -6VDC, 8AMP to 12VDC, 4AMP to 24VDC Inductive: 1AMP - 120VAC 0.5AMP - 240VAC |
| Terminals | #8 - 32screws, 1/4" blade |
| Connection | 1/8 NPT Male |
AF49-2011 can turn a vacuum pump on when pressure drops below 17"HG in a road driven car that has a large camshaft with low vacuum to create a better feel
| Specifications | AF49-2011 |
| Pressure Set Point 1 | 7"Hg vacuum opens |
| Max Operating Pressure | 30"Hg vacuum |
| Burst Pressure | 150PSI |
| Operating Temperature Range | -40° to 120°C |
| Electric Rating |
Resistive: 15AMP -6VDC, 8AMP to 12VDC, 4AMP to 24VDC Inductive: 1AMP - 120VAC 0.5AMP - 240VAC |
| Terminals | #8 - 32screws, 1/4" blade |
| Connection | 1/8 NPT Male |
