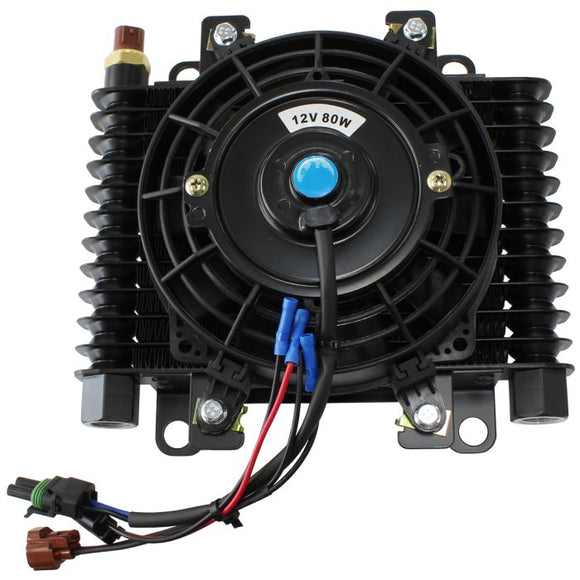

Competition Oil Cooler 10" x 7-1/2"
Competition Oil & Transmission Cooler
Part number: AF72-6000 and 72-6007

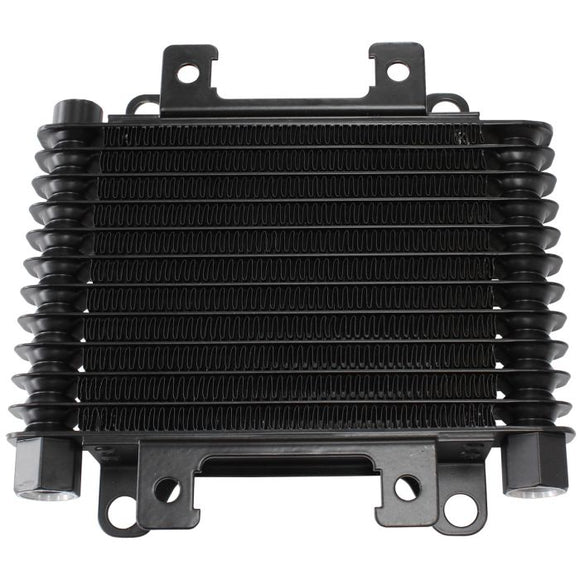

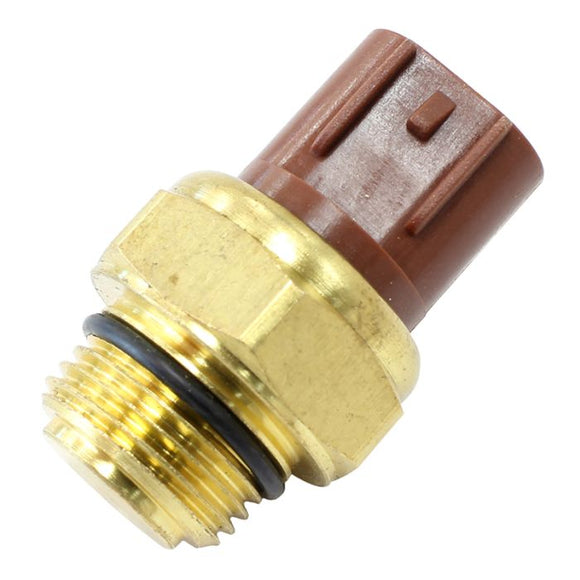

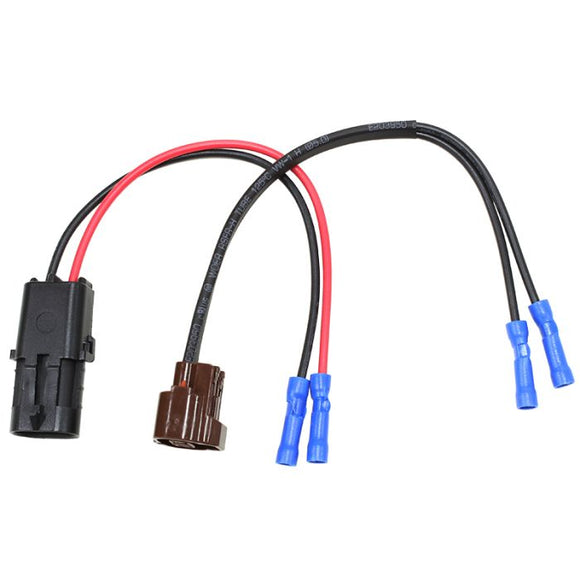

Aeroflow's engine and transmission oil coolers feature 1/2" NPT or -10 ORB female fittings for a perfect O-ring seal, thermostat wiring, plug kit and a high quality electric fan. It accepts engine oil, transmission and power steering applications and has been pressure tested to over 200psi. The thermal switch included activates the fan at 175°F/79.5°C. The cooler also features a fin and plate construction. 350CFM 7" fan draws 6 amps.The dimensions are 254mm (10") x 190.5mm (7.5")

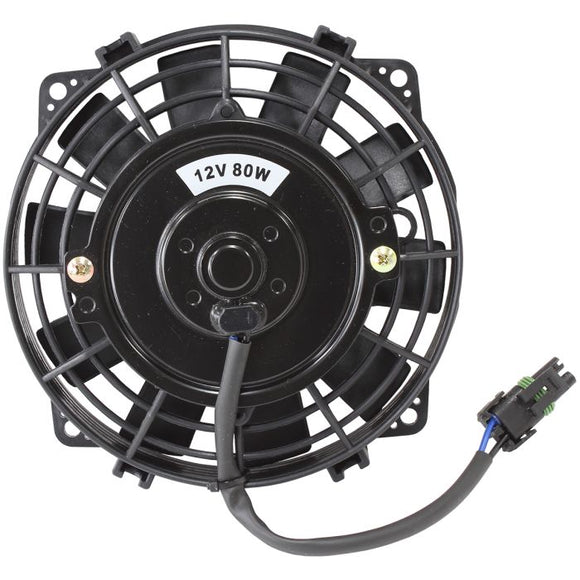

All electric fans are fully reversible blades and polarity for mounting either side of the heat exchanger. They are boxed in the pusher configuration. To change this to a puller fan simply unscrew 10mm nut (reverse (left hand) thread) and turn fan blade over keeping in mind polarity BLUE - Positive BLACK - Negative.
