Aeroflow Compact fuel pumps
Part Number: AF49-1064 to AF49-1066
Aeroflow compact silver electric fuel pumps are designed for carburettor engines, meeting most of your fuel system requirements for Street, Strip and Off Road Vehicles. The universal rotary vane design means it is engineered for constant use, long lasting performance and quiet operation. This unique design allows the fuel to cool the internals of the pump and with no points to burn out or shaft seals that are subject to deterioration which can lead to premature failure.

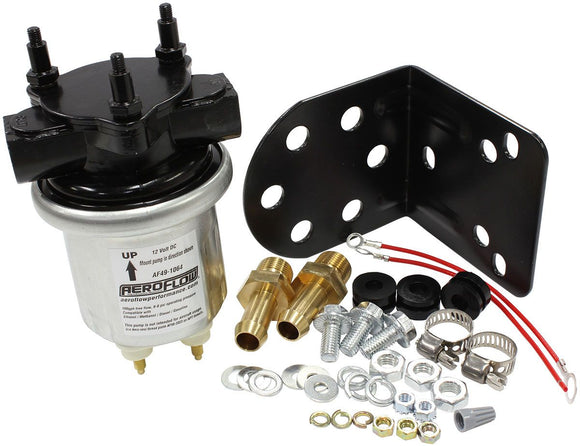

The Gold pump has an internal pressure-regulating valve pre-set to run 5-9 psi, and feature free-flow fuel delivery of up to 72 GPH. With female 1/4" NPT threads. Designed to handle unleaded, alcohol based fuels and diesel. Each fuel pump includes an installation kit which includes mounting hardware, mounting bracket, and wiring.

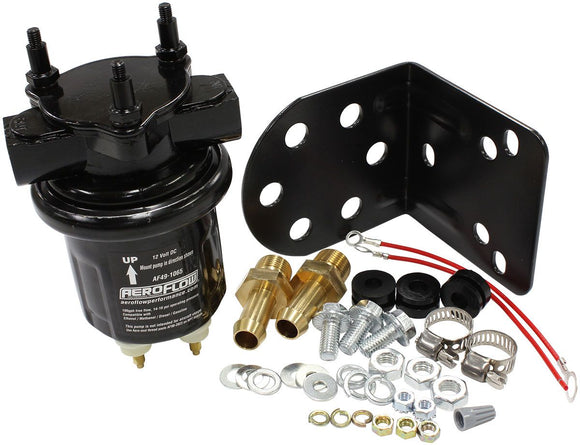

The Silver pump has an internal pressure-regulating valve pre-set to run 6-8 psi, and feature free-flow fuel delivery of up to 100 GPH. With female 3/8" NPT threads. Designed to handle unleaded, alcohol based fuels and diesel. Each fuel pump includes an installation kit which includes mounting hardware, mounting bracket, wiring and 12.5mm (1/2") barb fittings.
Dimensions of this pump are 115mm height and 85mm diameter.
Instructions
