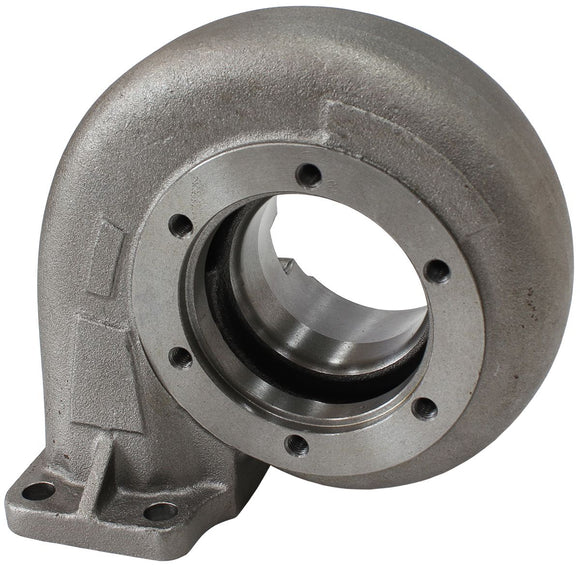

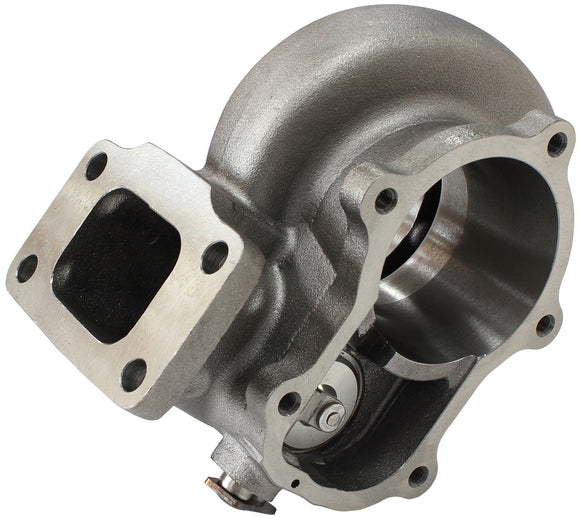

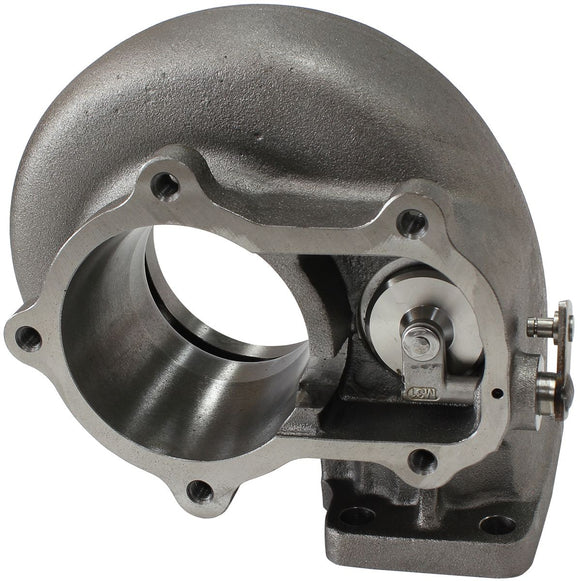

Aeroflow Turbine Housing Ford XR6 5862 & 6662 Turbochargers
Boosted 1.06 A/R T3 Inlet & Ford 5 Bolt Outlet Turbo Exhaust Housing
Part Number: AF8050-1030 (Available on order)
Aeroflow Performance offers a variety of replacement turbine rear housings for their entire range for Boosted series turbochargers. You can choose to option for a smaller or larger A/R ratio. This will allow you to fine tune depending on your application for engine configuration and driving conditions. Available in many different turbine inlet and outlet flanges to fit most exhaust manifolds such as T25/T28, T3, T4 ,T6 and V-Band and Exhaust downpipes such as 5 bolt and V-band. Turbine housings can be replaced on most turbos easily via mounting bolts or V-bands and a few minutes of time. They can be clocked 360 degrees to just about any position needed.
Specifications
1.06 compressor ratio ( A.R ) Cast Iron exhaust housing.
Ford 5 Bolt turbine outlet flange.
T3 turbine inlet flange gasket AF9551-0005.
Suits Boosted Ford XR6 5862 & 6662 turbochargers ONLY with 10 Blade Turbine Wheel:
AF8005-3013 / AF8005-3013BLK
AF8005-3014 / AF8005-3014BLK
AF8005-3024 / AF8005-3024BLK
