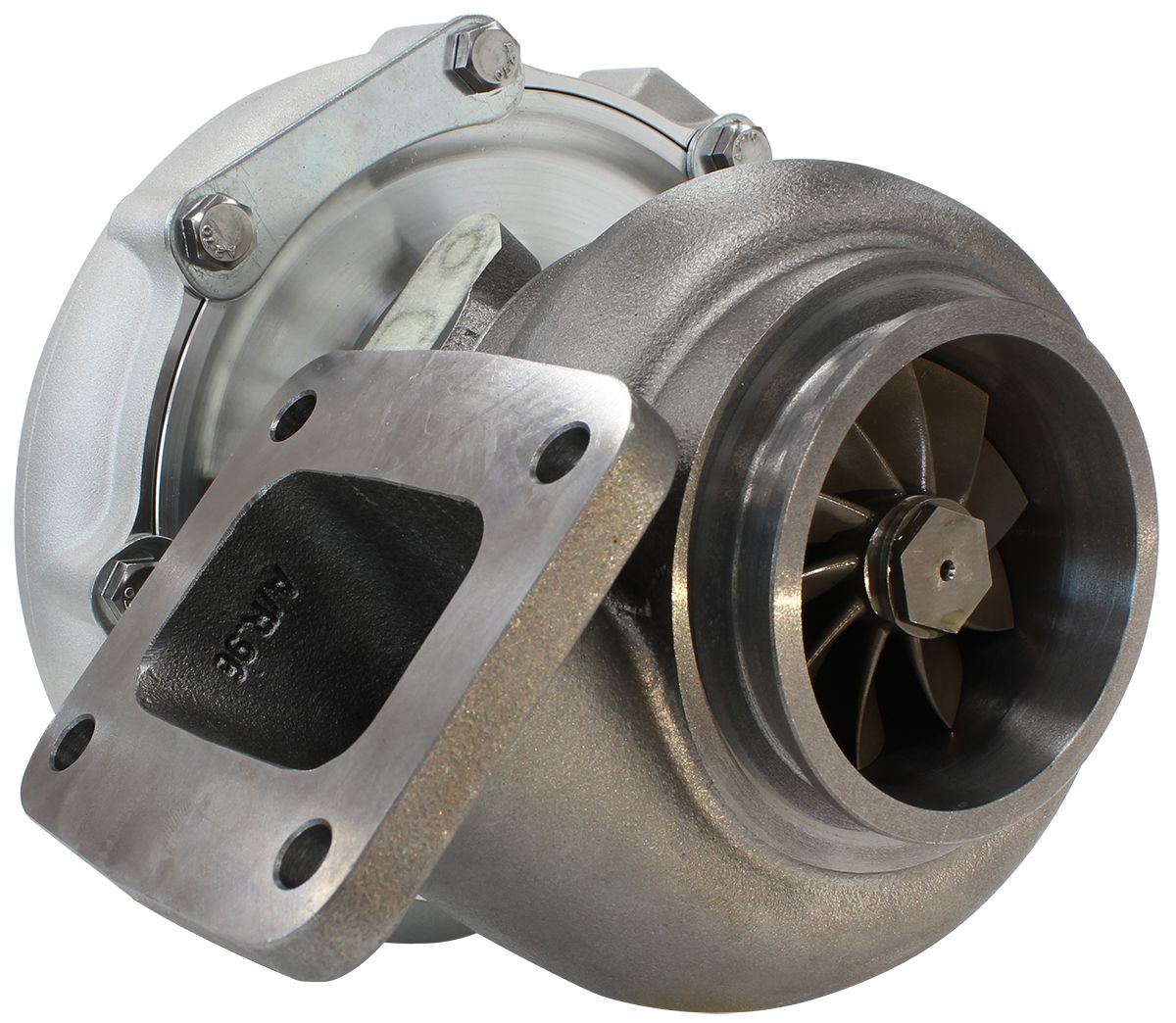

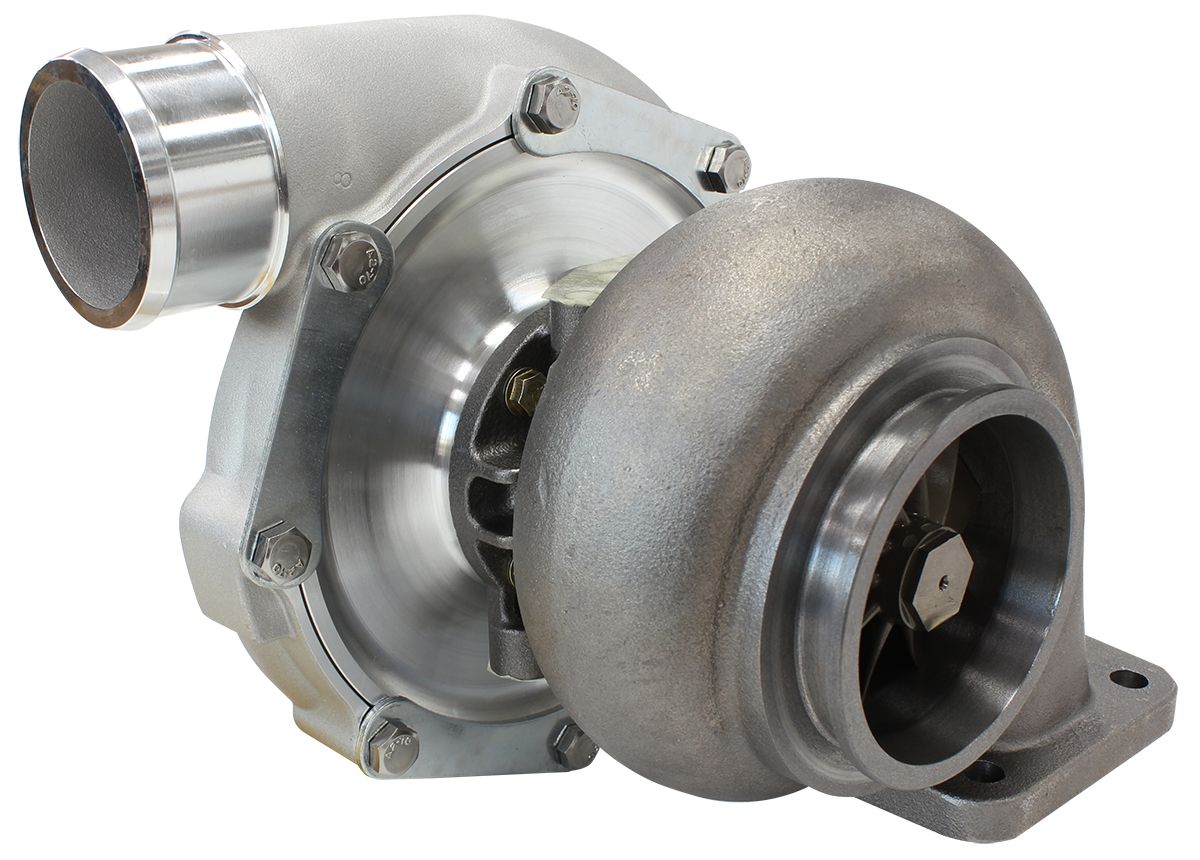

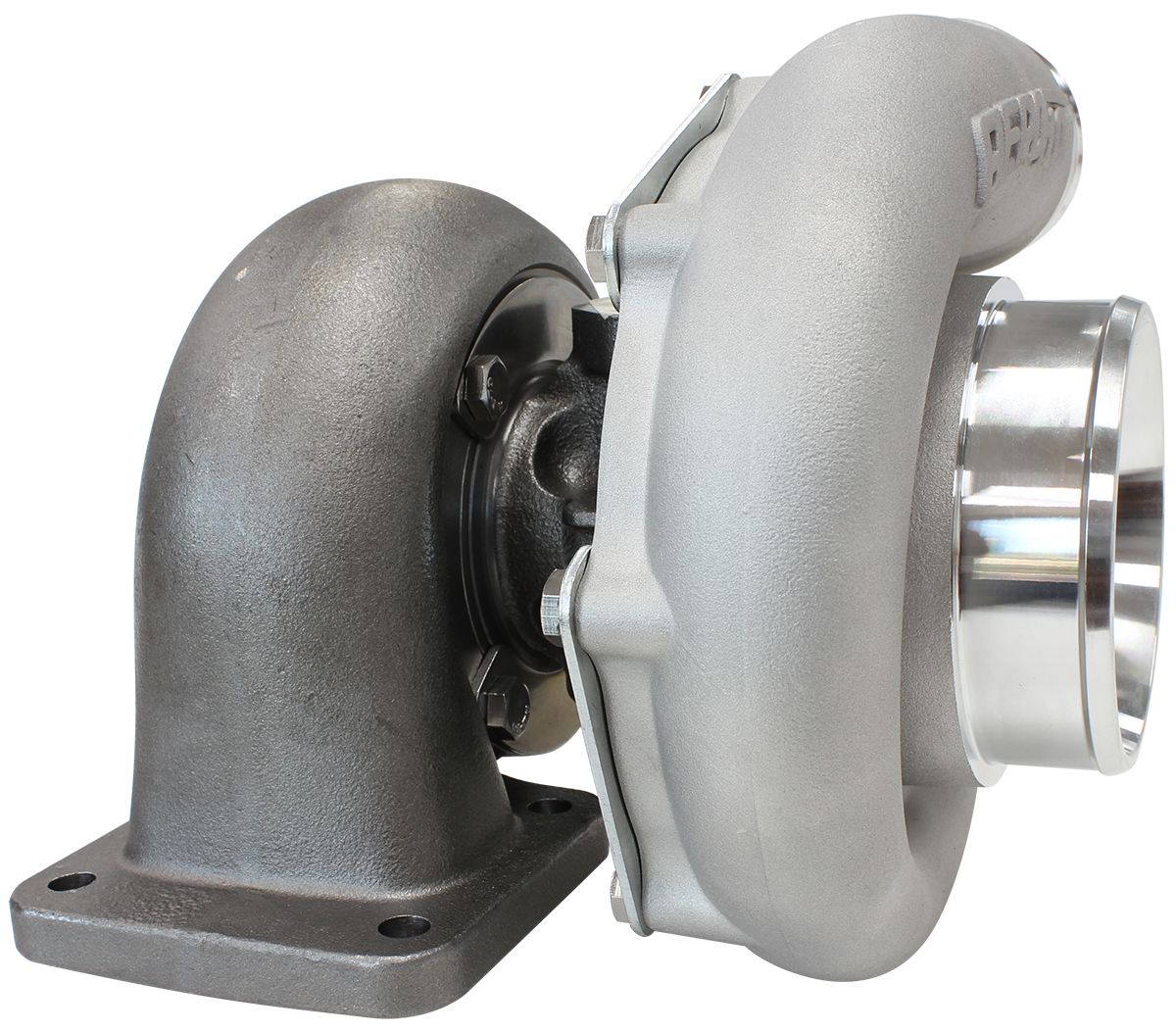

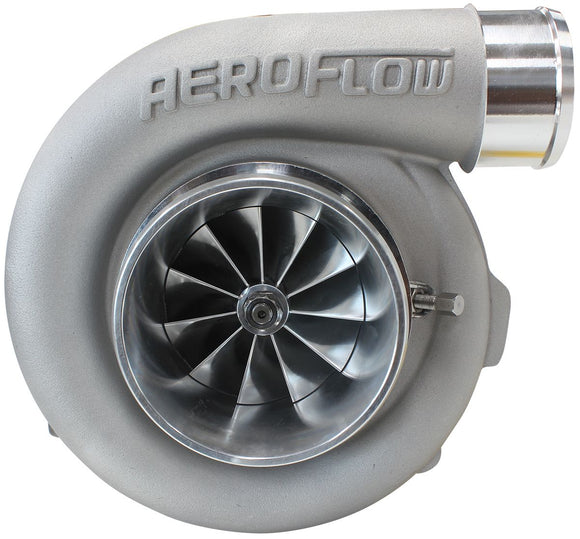

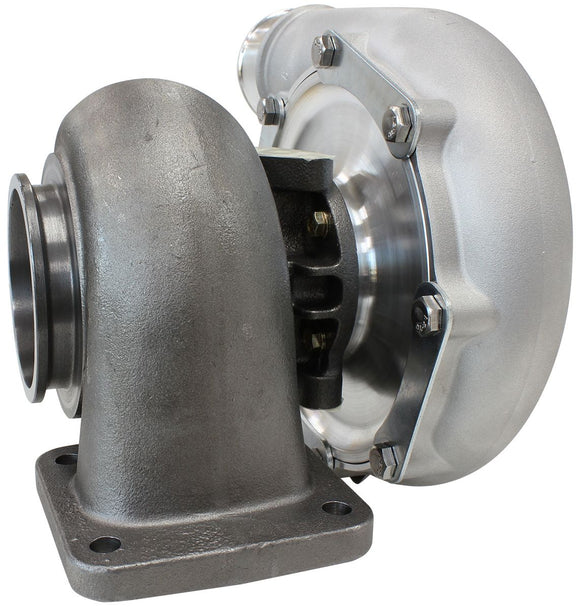

Aeroflow BOOSTED 7875 (Generation 1) T4 Turbocharger
Part Number: AF8006-4010 (Available on back order only)
Specifications
Recommended horsepower rating: 500-1050HP
Recommended engine displacement: 2.0L to 6.0L
- 360° journal bearing
- Point Milled 7075 billet compressor wheel
- Ported shroud compressor cover
- Speed sensor port included in compressor cover (Speed sensor sold separately, AF8050-1010)
- External wastegate sold separately
- Inlet flange gasket and turbo drain gasket included in turbo kit
- Must use a -6AN oil feel line to maintain core temperature (Warranty VOID if not used)
- T4 single entry turbine inlet flange
- SiMo-nodular cast iron rear housing
- V-Band turbine outlet flange
- 1/8" NPT oil feed fitting (sold separately) or a 38mm 2-bolt oil feed plate with M8 x 1.25mm thread size
- 50.80mm bolt centre turbo drain flange with M8 x 1.25mm thread size
Compressor Specifications
Inducer: 78.13mm
Exducer: 102.40mm
Extended Tip: 106.30mm
Compressor Inlet: 4" slip fit
Compressor Outlet: 2.5" slip fit
Turbine Specifications
Inducer: 82mm
Exducer: 75mm
A/R: 0.96
Turbine Inlet Flange: T4
Turbine Outlet Flange: V-Band (AF8080-1024)
Wastegate
External wastegate
Boosted by Aeroflow products are manufactured to industry standard specifications from quality materials. Utmost care is taken to ensure products are free from blemishes, inconsistencies and defects. Aeroflow products carry a one year warranty from the date of purchase however warranty will be void if the product is not used in the correct way for which it was intended. Boosted Turbochargers and replacement parts are designed for street use only. Products used in race applications and/or products that have been modified, damaged, incorrectly installed or incorrectly/poorly maintained are not covered by this warranty. Proof of purchase will be required for all warranty claims.
Boosted 360° journal bearing turbochargers must use a -6AN oil feel line to maintain core temperature.
