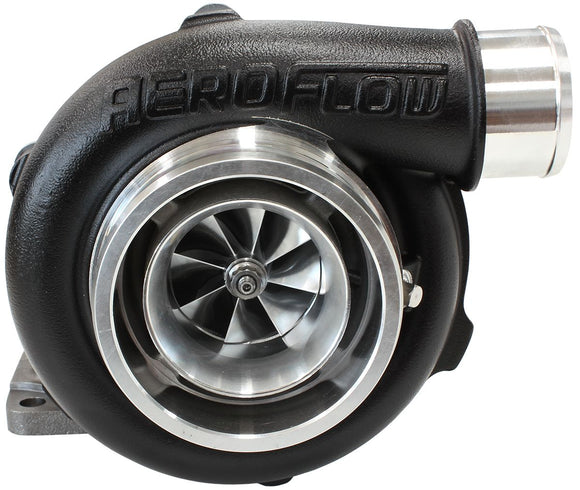

BOOSTED 5455 Turbocharger Specifications
Products used in race or diesel applications and/or products that have been modified, damaged, incorrectly installed or incorrectly/poorly maintained are not covered by this warranty. Proof of purchase will be required for all warranty claims.
Recommended horsepower rating: 340-650HP
Recommended engine displacement: 1.8L to 3.0L
- Dual ceramic ball bearing
- Point Milled 7075 billet compressor wheel
- Ported shroud compressor cover
- Speed sensor port included in compressor cover (Speed sensor sold separately, AF8050-1010)
- External wastegate sold separately
- Inlet flange gasket, turbo drain gasket and -4AN turbo oil feed fitting with restrictor included in turbo kit. (Warranty VOID if not used)
- T3 single entry turbine inlet flange
- SiMo-nodular cast iron rear housing
- V-Band turbine outlet flange
- M14 x 1.5mm coolant port thread
- 7/16"-24 oil feed fitting thread
- 38mm bolt centre turbo drain flange with M8 x 1.25mm thread size
Compressor Specifications
Inducer: 54mm
Exducer: 71mm
Extended Tip: 73.79mm
A/R: 0.60
Compressor Inlet: 4" Slip fit
Compressor Outlet: 2" Slip fit
Turbine Specifications
Inducer: 60mm
Exducer: 55mm
A/R: 0.63
Turbine Inlet Flange: T3
Turbine Outlet Flange: V-Band (AF8080-1000)
Wastegate
External wastegate
