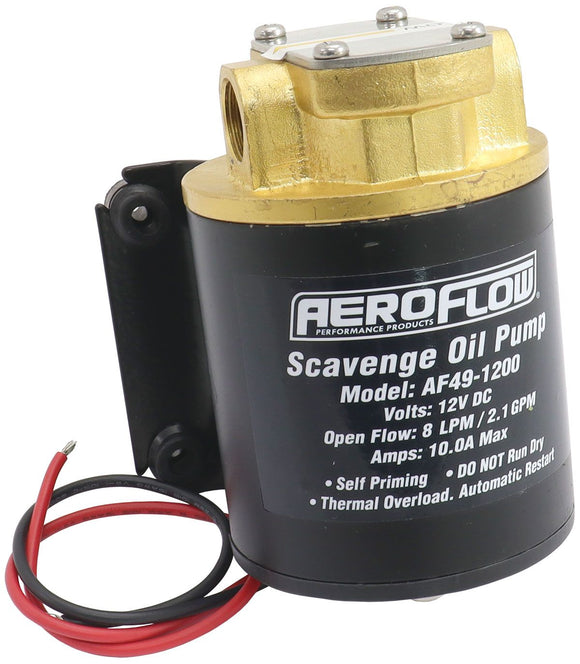

Aeroflow Electric Oil Transfer/Scavenge Gear Pump
Flows up to 8 Litres to Minute (2.1 Gallons Per Minute )
Aeroflow Performance 12-volt electric oil pump is designed to handle the toughest automotive racing environments for transmission / gear oil fluid cooling or scavenge systems on your turbo drain back systems.. The internals feature a hardened bronze spur gear & rotors so there are no diaphragms to fail during operation. NOTE: this gear pump will have a higher noise level due to the internal design.
The pump's small size and reduced weight make it ideal for any space or weight-limited applications. The case features vibration-resistant rubber mounting bracket and feet.
Applications for this pump include:
- Oil circulation in transmission, differential, and transfer case cooling systems
- Oil scavenging applications for turbos
- Other oil circulation and scavenging applications
- NOT recommended for pre-oiling unless the system includes a pressure bypass after the pump. This is a positive displacement pump and "dead-heading" the pump will cause the pump to fail.
Voltage: 12V DC
Flow capacity: 8 Litres per minute (2.1 Gallons per minute)
Can be mounted in any position
Female 3/8" NPT Ports
Current Draw: 6 Amp (max. 10 Amp)
Dimensions: Length 155.5mm x Width 119mm x Height 103mm
