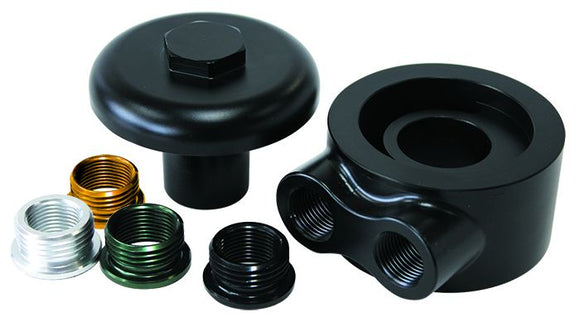

Aeroflow Billet 90° Low Profile Block Adapter
Available up to 8 business days shipping.
To help move your oil filter to a new location or to add a new external oil cooler to the engine, Aeroflow Performance have this billet low profile remote block adapter. This two-piece low-profile design is perfect for clearing tight spots like engine conversions with tight chassis rails! This spin on adapter converts the oil filter landing on the engine block to an oil passage for use with a remote oil cooler and/or a remote oil filter. The main body is made from billet 6061 aluminium, then anodised black for great looks and corrosion resistance. Featuring two -8ORB ports that are labelled inlet and outlet allow you to run custom plumbing braided or rubber hoses. With 2 1/8" NPT auxiliary ports that are 25mm deep for various sensors or external lines to be installed. Included in this remote block adapters are various universal thread adapters to suit a wide variety of engines..
This includes the following thread adapters (Internal Thread for all 3/4”-16 internal thread):
3/4”-16 thread insert (Gold)
13/16”-16 thread insert (Blue)
M18 x 1.5mm thread insert (Silver)
M20 x 1.5mm thread insert (Black)
M22 x 1.5mm thread insert (Green)
Remote Block Adapter Dimensions:
Overall Diameter - 76.60mm
Overall Height with No Cap - 40.20mm
Mushroom Top Cap Height - 14.15mm
Oil Filter landing Dimensions:
Seal Internal Diameter - 62mm
Seal Outside Diameter - 87mm
NOTE: Thread adapter MUST be screwed into block adapter first NOT onto engine block. This will guarantee full thread engagement.
Torque Mushroom Cap to 18-20 ft. lbs.
