Transmission Dipstick
Part number: AF72-2500 to AF72-2503
Availble in Black and Chrome finish. (Available on order if not listed)

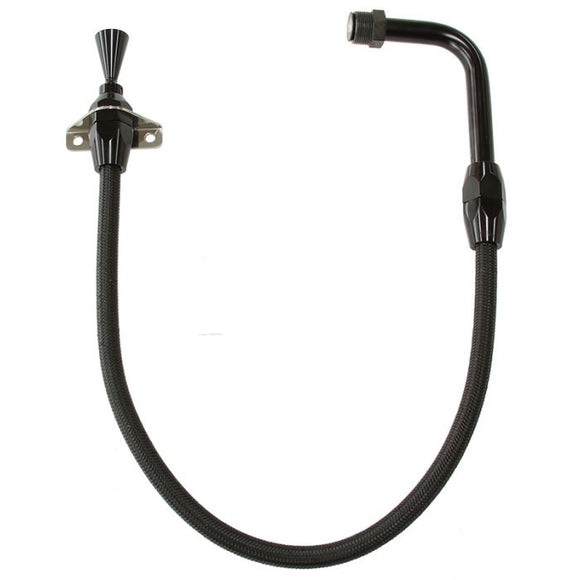

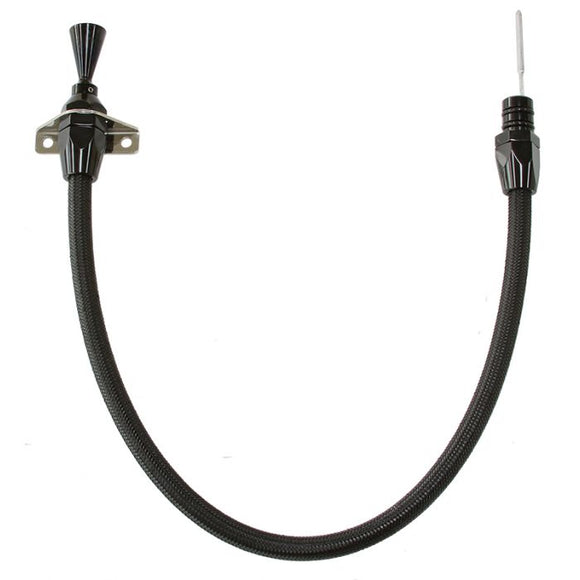

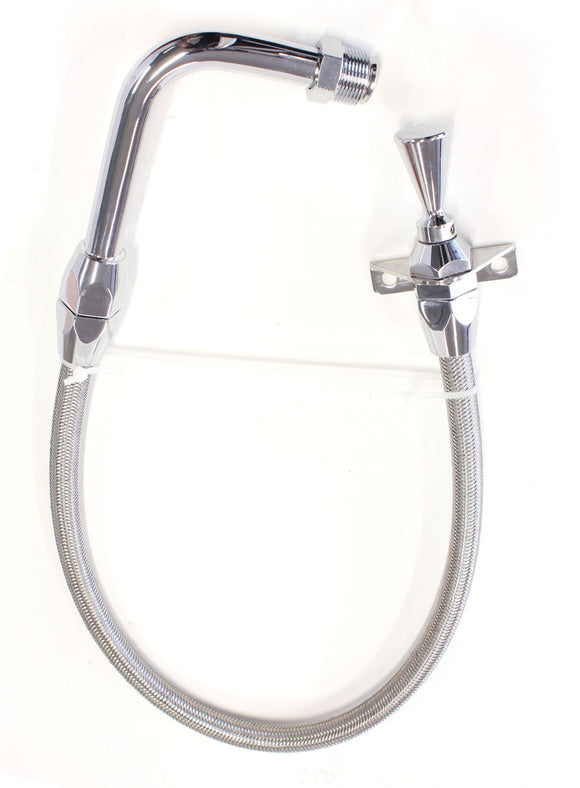

Aeroflow Flexible Firewall Mount Transmission Dipsticks provide a clean stable universal way to both keep up with your vehicle’s transmission fluid level, but adds a high attention to detail in your engine bay. This style of dipstick requires 2 holes drilled into the firewall to mount which gives you easy access to the dipstick top check or top up fluid.
Featuring 308 stainless steel braided covering over a hard-wearing high quality PTFE liner. The handle and ends are made from 6061-T6 aluminium then hand polished and chrome plated. They feature double O-rings for a secure seal. These not only look great but the flexible inner dipstick is marked to give accurate trans fluid level readings.
Each dipstick includes a dipstick funnel adapter to assist in filling which is also sold separately (AF59-1015).
All firewall mount dipsticks are 24” (610mm) in length.
Note: AF72-2501 also suits GM Trimatic transmission but requires a modification which involves shortening the braided body by 15mm (19/32")
