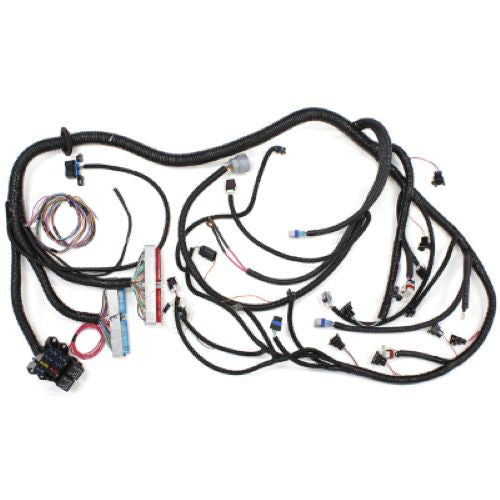

Standalone Wiring Harness Suit GM LS Series with 4L60E Automatic Transmission
Part Number: AF49-1505
Aeroflow Performance wiring harness is designed to be a complete plug and play harness for EFI GM LS1/LS6 series engines. It is a complete standalone replacement wiring harness that suits GM LS1 engines (1997 to 2002) with drive by cable throttle body and 4L60E or 4L80E automatic transmissions.The harness is constructed with GM Delphi connectors and terminals and high temperature wires. It includes all wiring that is required by the Powertrain Control Module (PCM) to run and control the fuel injection system and automatic transmission.
Connections included for:
- Fuse/Relay Box
- Fuel Pump Control (Relay included)
- Fan controls (Relays and fuse Sold Separately)
- Check Engine Light, Speedo output, Tachometer, OBD2 Port
- Idle Air Control and Throttle Position Sensor
- 3-Pin Mass Air Flow Sensor
- Manifold Absolute Pressure Sensor
- Engine Coolant Temp Sensor
- 4-Pin Alternator Control
- 2 x Oxygen Sensors
- Knock Sensor
- Crankshaft Position
- Camshaft Position
- Fuel Injectors (EV1 Plugs)
- Coil Packs
- Automatic Transmission Control
